Valero is an open-source tool for storing, restoring, and migrating Kubernetes cluster resources and persistent volumes. Valero provides a way to hold the entire state of a Kubernetes cluster, all its objects and their consistent numbers, store backup files to Cloud storage like AWS S3, and then restore them to a previous state to ensure K8S data resilience, disaster recovery results and easy transport between clusters.
Velero for EKS
Backup EKS cluster using Velero, can be followed by the below path:
- Install Velero in EKS cluster
- AWS CLI is configured with the correct credentials
- S3 bucket created and configured for Velero to communicate for backup and restore
- Prepare AWS S3 bucket and IAM user
# create S3 bucket for Velero
BUCKET=zz-asb-k8s-velero-backup-bucket
REGION=ap-southeast-2
aws s3api create-bucket \
--bucket $BUCKET \
--region $REGION \
--create-bucket-configuration LocationConstraint=$REGION
# create IAM user for Velero
aws iam create-user --user-name velero
cat > velero-policy.json <<EOF
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"ec2:DescribeVolumes",
"ec2:DescribeSnapshots",
"ec2:CreateTags",
"ec2:CreateVolume",
"ec2:CreateSnapshot",
"ec2:DeleteSnapshot"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"s3:GetObject",
"s3:DeleteObject",
"s3:PutObject",
"s3:AbortMultipartUpload",
"s3:ListMultipartUploadParts"
],
"Resource": [
"arn:aws:s3:::${BUCKET}/*"
]
},
{
"Effect": "Allow",
"Action": [
"s3:ListBucket"
],
"Resource": [
"arn:aws:s3:::${BUCKET}"
]
}
]
}
EOF
aws iam put-user-policy \
--user-name velero \
--policy-name velero \
--policy-document file://velero-policy.json
aws iam create-access-key --user-name velero
vim credentials-velero
[default]
aws_access_key_id=<AWS_ACCESS_KEY_ID>
aws_secret_access_key=<AWS_SECRET_ACCESS_KEY>
- Install Velero
# install Velero with AWS s3 and IAM user cred
velero install \
--provider aws \
--bucket $BUCKET \
--secret-file ./credentials-velero \
--backup-location-config region=$REGION \
--snapshot-location-config region=$REGION
# check for Velero deployment status
kubectl get all -n velero
NAME READY STATUS RESTARTS AGE
pod/velero-86c547688f-s6l4d 1/1 Running 3 (17m ago) 42h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/velero 1/1 1 1 25d
NAME DESIRED CURRENT READY AGE
replicaset.apps/velero-657bc85678 0 0 0 25d
replicaset.apps/velero-86c547688f 1 1 1 42h
# verify Velero version and S3 backup location
velero version
Client:
Version: v1.11.0
Git commit: 0da2baa908c88ec3c45da15001f6a4b0bda64ae2
Server:
Version: v1.11.0
velero backup-location get
NAME PROVIDER BUCKET/PREFIX PHASE LAST VALIDATED ACCESS MODE DEFAULT
default aws zz-asb-k8s-velero-backup-bucket available 2024-09-11 06:49:39 +0000 UTC ReadWrite true
- Initial namespace based backup and a full cluster backup, then verify backup status
# mamually initiate a cluster full backup and a namespace backup
velero backup logs full-cluster-backup
velero backup create eks-backup --include-namespaces zackblog-dev
velero get backup
NAME STATUS ERRORS WARNINGS CREATED EXPIRES STORAGE LOCATION SELECTOR
eks-backup Completed 0 0 2024-10-11 07:17:58 +0000 UTC 29d default <none>
full-cluster-backup Completed 2 0 2024-10-11 07:15:51 +0000 UTC 29d default <none>
# check and verify backup details
velero backup logs eks-backup
velero backup describe eks-backup
Name: eks-backup
Namespace: velero
Labels: velero.io/storage-location=default
Annotations: velero.io/source-cluster-k8s-gitversion=v1.31.1
velero.io/source-cluster-k8s-major-version=1
velero.io/source-cluster-k8s-minor-version=31
Phase: Completed
Namespaces:
Included: zackblog-dev
Excluded: <none>
Resources:
Included: *
Excluded: <none>
Cluster-scoped: auto
- Restore from previous backup after deleting deployment under a namespace
Now we are going to validate Velero restore from the previous backup, we will first delete the deployment under namespace zackblog-dev and then restore it from the previous backup eks-backup.
# existing resource under namespace
kubectl get all -n zackblog-dev
NAME READY STATUS RESTARTS AGE
pod/zackweb-674759b48f-b9frj 1/1 Running 1 (127m ago) 4h10m
pod/zackweb-674759b48f-zl6gq 1/1 Running 1 (127m ago) 4h10m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/zackweb-service LoadBalancer 10.111.140.121 <none> 80:31132/TCP 7h56m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/zackweb 2/2 2 2 7h56m
NAME DESIRED CURRENT READY AGE
replicaset.apps/zackweb-55547554f6 0 0 0 7h56m
replicaset.apps/zackweb-5bd544cfb4 0 0 0 7h39m
replicaset.apps/zackweb-674759b48f 2 2 2 4h10m
replicaset.apps/zackweb-f4f74b898 0 0 0 4h13m
# delete deployment
kubectl delete deployments.apps -n zackblog-dev zackweb
deployment.apps "zackweb" deleted
kubectl get all -n zackblog-dev
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/zackweb-service LoadBalancer 10.111.140.121 <none> 80:31132/TCP 7h57m
# restore via velero
velero restore create --from-backup eks-backup
Restore request "eks-backup-20241011083747" submitted successfully.
Run velero restore describe eks-backup-20241011083747 or velero restore logs eks-backup-20241011083747 for more details.
# verify velero restore status
velero restore get
NAME BACKUP STATUS STARTED COMPLETED ERRORS WARNINGS CREATED SELECTOR
eks-backup-20241011083747 eks-backup Completed 2024-10-11 08:37:48 +0000 UTC 2024-10-11 08:37:49 +0000 UTC 0 3 2024-10-11 08:37:48 +0000 UTC <none>
kubectl get all -n zackblog-dev
NAME READY STATUS RESTARTS AGE
pod/zackweb-674759b48f-b9frj 1/1 Running 0 18s
pod/zackweb-674759b48f-zl6gq 1/1 Running 0 18s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/zackweb-service LoadBalancer 10.111.140.121 <none> 80:31132/TCP 7h58m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/zackweb 2/2 2 2 17s
NAME DESIRED CURRENT READY AGE
replicaset.apps/zackweb-55547554f6 0 0 0 18s
replicaset.apps/zackweb-5bd544cfb4 0 0 0 18s
replicaset.apps/zackweb-674759b48f 2 2 2 18s
replicaset.apps/zackweb-f4f74b898 0 0 0 17s
- Scheduled Backups
Velero can be set to perform scheduled backups at regular intervals, here we will create a scheduled Backup hourly.
velero schedule create daily-backup --schedule "0 * * * *"
# Cron schedules use the following format
# ┌───────────── minute (0 - 59)
# │ ┌───────────── hour (0 - 23)
# │ │ ┌───────────── day of the month (1 - 31)
# │ │ │ ┌───────────── month (1 - 12)
# │ │ │ │ ┌───────────── day of the week (0 - 6) (Sunday to Saturday;
# │ │ │ │ │ 7 is also Sunday on some systems)
# │ │ │ │ │
# │ │ │ │ │
# * * * * *
# validate schedule
velero schedule get
NAME STATUS CREATED SCHEDULE BACKUP TTL LAST BACKUP SELECTOR PAUSED
hourly-backup Enabled 2024-09-16 03:48:52 +0000 UTC 0 * * * * 72h0m0s 45m ago <none> false
# check scheduled backup
root@asb:~# velero backup get
NAME STATUS ERRORS WARNINGS CREATED EXPIRES STORAGE LOCATION SELECTOR
eks-backup Completed 0 0 2024-10-11 07:17:58 +0000 UTC 29d default <none>
full-cluster-backup Completed 2 0 2024-10-11 07:15:51 +0000 UTC 29d default <none>
hourly-backup-20241011080039 Completed 2 0 2024-10-11 08:00:39 +0000 UTC 2d default <none>
hourly-backup-20241011070039 Completed 2 0 2024-10-11 07:00:39 +0000 UTC 2d default <none>
hourly-backup-20241011063839 Completed 2 0 2024-10-11 06:38:42 +0000 UTC 2d default <none>
hourly-backup-20241011050003 Completed 2 0 2024-10-11 05:00:03 +0000 UTC 2d default <none>
hourly-backup-20241011040003 Completed 2 0 2024-10-11 04:00:03 +0000 UTC 2d default <none>
hourly-backup-20241011030003 Completed 2 0 2024-10-11 03:00:03 +0000 UTC 2d default <none>
hourly-backup-20241011020003 Completed 2 0 2024-10-11 02:00:03 +0000 UTC 2d default <none>
- Cloud backup storage verification

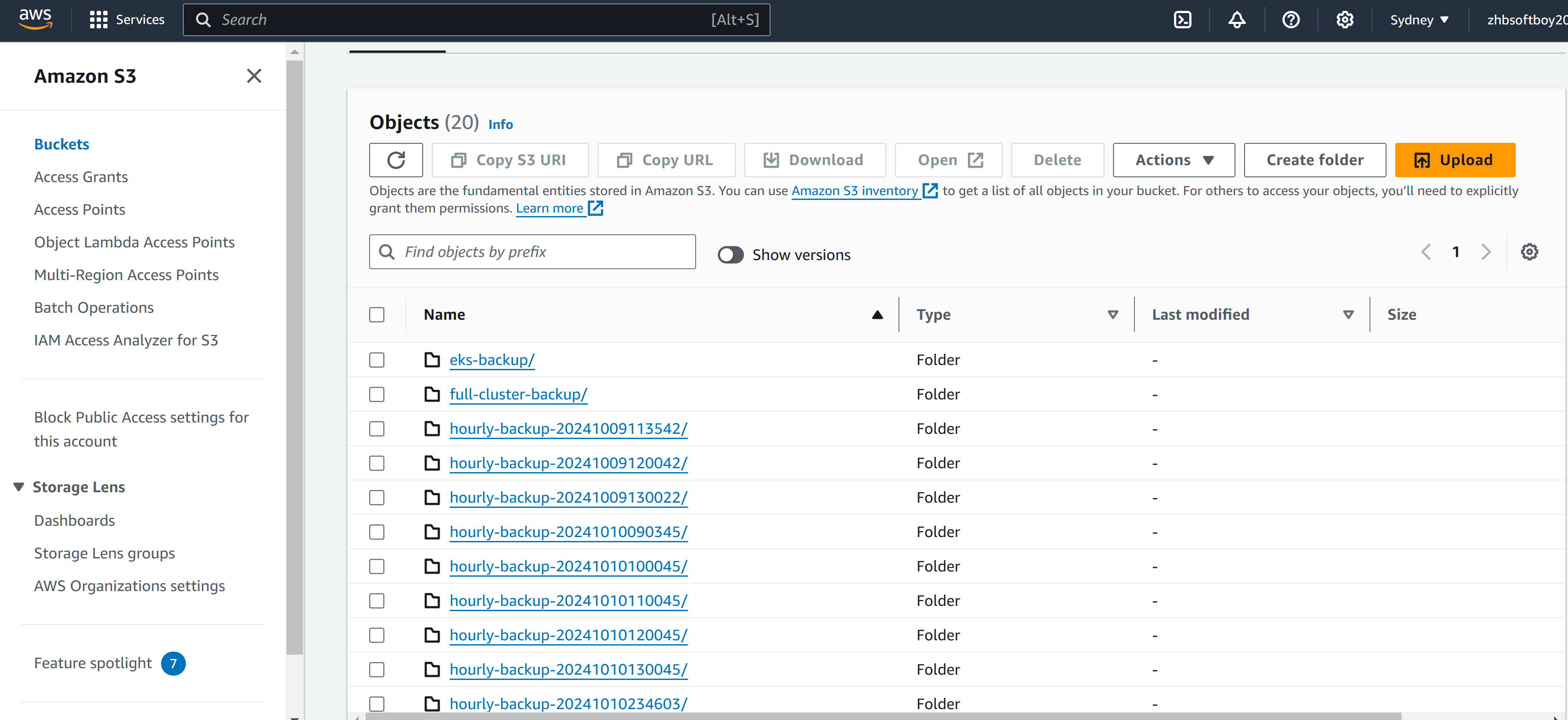

Verify backups in S3 bucket
Conclusion
Here’s a summary of what we covered and achieved in the common Velero administrative tasks for backup and restore on EKS cluster:
- Reliable Backup System: Set up a robust system to back up your Kubernetes cluster, including both application data and persistent volumes.
- Restore Flexibility: Gained the ability to restore the cluster to specific points in time, including partial or full cluster recovery.
- Disaster Recovery: Developed a strategy for recovering from a full cluster failure using Velero and S3 storage.
- Automated Backups: Automated backups with scheduling to ensure that regular backups are taken without manual effort.
- Storage Efficiency: Managed backup retention to save on storage costs and keep backups organized.
- Monitoring and Logs: Monitored the status of all backup and restore tasks through detailed logging and error reporting.
